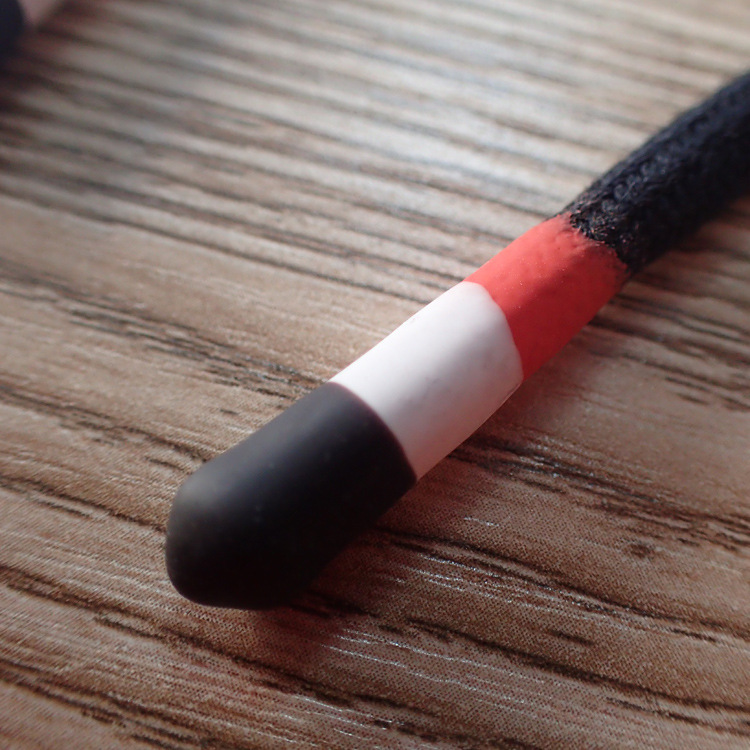

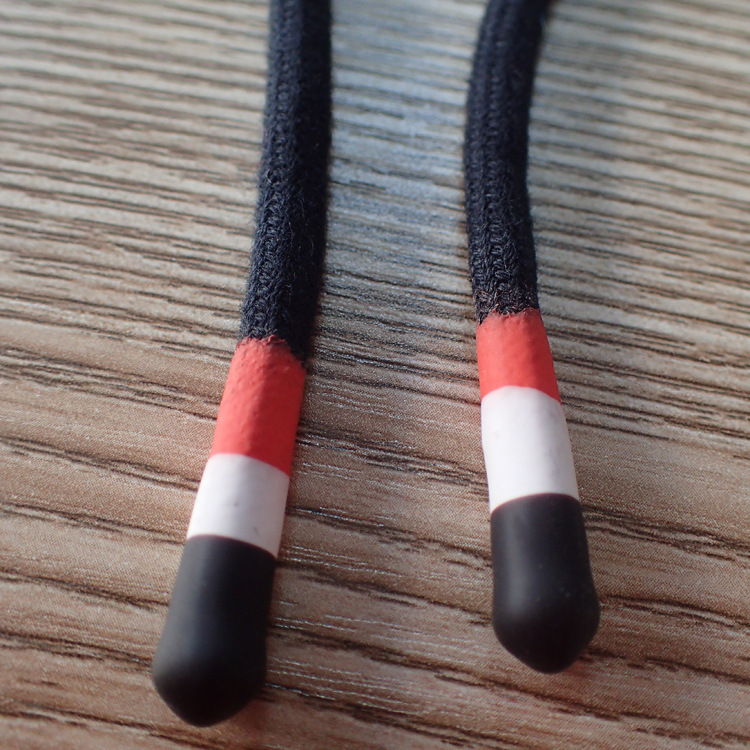

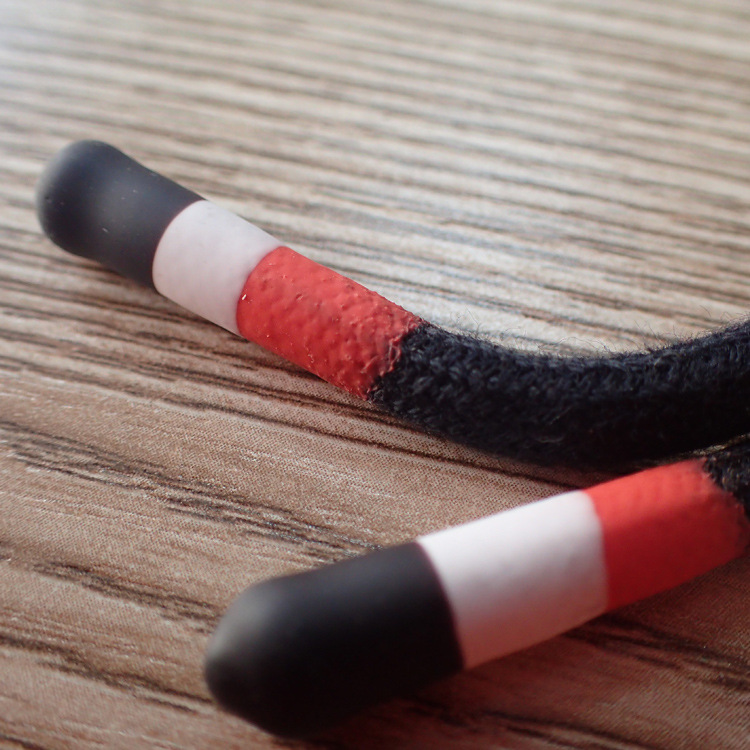

Custom fashion silicone stopper PVC final part for shoe lace tips

Item No.: shoe#04
Stopper final part for shoe lace , fashion material are made with silicone or PVC
***all our raw material meet the  latest standards by EURO Reach in 2023***
Logos and colors : as per your artwork
Description
Description

Where the lace meets the eyelet

A lace end is read second only to the upper it hangs from. It has to pass through the eyelet without catching, hold its place when the lace is pulled tight, and keep the cord from unravelling between one tying and the next. This silicone stopper PVC final part for shoe lace tips is moulded as a single button-on piece: a soft silicone section that closes around the trimmed cord, and a PVC final part that gives the end a clean taper and a face for your mark.

The bore, the profile and the wall thickness are cut from your drawing, so the fit follows the cord you actually buy rather than a nominal size. That matters, because a lace end is only as good as its grip — everything else about it, including the logo, sits on top of that.

We mould these on the same floor as our 3D PVC patches, so a small embossed wordmark and a tight, clean edge are routine work at this scale. Colour is pigmented into the compound and matched to your lace and eyelets, which means a whole trim set — the ends, the badge on the tongue, the pull on the zip — can share one reference instead of three.

How the finished end behaves in wear

  • Threads without snagging: the closing profile is moulded to a smooth taper, so the lace finds the eyelet on the first push instead of catching on a frayed or painted end.
  • Holds by squeeze, not by a crimp: silicone compresses evenly around the circumference of the cord, so a braided lace keeps its round shape where a metal crimp would flatten it.
  • Keeps the last few centimetres straight: the PVC section gives the end enough body to stay aligned with the lace when it is pulled, which is what makes re-lacing quick.
  • Flexes where the shoe flexes: the silicone sits behind the tip, right where the lace bends at the top eyelet, and takes that repeated bend without splitting.
  • Finished at the rim: parting lines are kept light and the edge is dressed where the design needs it, because a sharp rim on a lace end finds knit and mesh uppers quickly.
  • Colour that runs through the material: scuffing near the eyelet shows as a soft mark rather than a white chip, and an embossed or engraved mark is formed in the mould with no label edge to lift — the same approach we take on custom silicone patches.
  • Stays light: the part adds very little weight, so a thin performance lace still falls and knots the way it was designed to.

Matching the bore to the cord you run

Cord typeWhat the bore is set againstWorth flagging
Flat woven laceWidth and thickness measured flat, plus how far the weave compresses when pinchedA wide flat lace needs a flatter bore, or the end twists on the cord
Round braided laceDiameter at the point where the end will sitBraid compresses under the squeeze, so a bore sized on the relaxed cord can loosen once the shoe is laced
Elastic or stretch cordThe cord measured stretched, at the tension the design runs atAn end sized at rest can feel right on the bench and slip once the lace is under load
Waxed or coated laceCoating thickness over the coreA tight bore can polish through the coating, so the fit is kept a little easier
Boot and hiking laceDiameter, plus how much end you want to handleA longer body is easier to find with cold or gloved hands
Apparel or bag drawcordCord diameter and how hard the cord is pulledThese cords are dragged over edges, so the rim finish matters as much as the grip
SGS SVHC test report for silicone rubber sample from TWINGS

Shoes, drawcords and matched trim sets

On performance running and training shoes the end has to stay out of the way: thin, frequently re-tied laces want a light tip that does not press through the tongue padding. On hiking and outdoor boots the demands reverse — a thicker lace, mud, wet and drying out again — and a longer body with a rigid PVC section keeps the end straight and easy to find when hands are cold. Court and skate shoes go through the most cycles of all: laces are tied and re-tied many times a day and dragged over grip tape, so the rim and the bore take the wear rather than the logo.

The same part finishes cords away from the shoe. Hoodie and jogger drawcords, bag and backpack closures and lanyard ends all need a cord end that resists fraying and can carry a brand mark, and apparel teams often order shoelace tips for the footwear range and drawcord ends for the apparel range in one pass, so colour and finish match across the collection.

Footwear programmes rarely buy an end on its own. It is usually specified with the rest of the trim set — the badge on the tongue and heel, a zip pull, and custom PVC patches on the upper — and every one of those parts can be matched to this one.

SGS test report for a TPR badge

Marking a face this small

  • 2D emboss: the mark sits proud with a flat top face, which suits a short wordmark or a simple symbol that has to read at a glance.
  • 3D emboss: sculpted relief with depth and shadow, run on the same tooling approach as our 3D silicone patches, so a rounded mark can be found under a thumb.
  • Engraving: a recessed line, quiet and precise, well-suited to fine type and small repeat marks.
  • Print: flat colour laid on the face or into a recess, the route for multi-colour artwork and the finest linework.
  • Matt or shiny face: a low-sheen finish sits quietly next to matte laces, while a glossy face catches light against a matte upper or a metal eyelet.
  • Colour reference: matched to a lace swatch, a Pantone number or a part you already run, and approved on a physical sample rather than on a screen.

How an order runs from drawing to carton

  1. Send the drawing or vector file together with the cord you plan to use and a colour reference — a Pantone number, a lace swatch, or a part you already run. These are the same references we match against on custom silicone patches.
  2. We review what the mould can hold: the smallest stroke in the wordmark, how the mark will sit on a tapered face, and whether an emboss, an engraving or a print reads clearly at the finished size.
  3. Tooling is cut and the compound colour matched to your reference before anything is shot.
  4. A pre-production sample is made on your own lace, so grip, shade and mark depth can be judged in the hand rather than on a screen.
  5. You approve the piece, or we adjust the bore, the profile or the shade and run it again until it is right.
  6. Bulk follows the approved sample, packed in paper packaging and paper boxes as standard, with a specific packing requirement met where you have one.
  7. Goods ship from Hong Kong, Guangzhou or Shenzhen; tell us the destination and the delivery window and the routing is fixed with the order.
Specification sheet for shoelace stopper final part with product details

Scale & Supply Capability

TWINGS INDUSTRIAL CO.,LTD is a manufacturer rather than a trading office: the trim components we sell are produced and shipped factory-direct, so your order is quoted, sampled and made by the same team. Every job starts from your artwork and logo — we build a sample for your approval, then run bulk to that approved standard so colour, surface detail and hand feel stay consistent from the first piece to the last carton. Tell us your target quantity and delivery window and we will confirm what we can commit to.

Consistency on a part this small comes from things that do not change: the compound, the tool and the approved sample. Silicone and PVC are mixed to the same reference each time, so the squeeze on the cord and the feel of the tip are the same on a repeat order as on the first run. The mould that forms the gripping section and the closing profile is kept for repeat runs, so grip depth and mark depth stay where they were approved. The approved piece becomes the standard. Colour, emboss depth and fit are checked against that physical sample through the run rather than against a screen preview, and it stays on file for the next order. Our silicone and PVC meet current REACH requirements (2023), and the silicone rubber has been screened to SGS SVHC with results at or below 0.1% (w/w). All of it happens in one plant. As a PVC patch manufacturer we cut the tooling and shoot the parts ourselves, so a change to the bore or to the mark is a tooling adjustment rather than a conversation with a third party.

FAQ

Q1. Does the end need glue, or a tool, to fit?

Neither. It is a push fit: the trimmed lace goes into the bore and the silicone holds it by friction alone. Cut the cord square and seal the cut first, so loose fibres cannot work their way out inside the part. As a PVC patch manufacturer we cut the bore to the cord you send, which is why no adhesive and no crimping tool are needed on your line.

Q2. Our lace already arrives with a crimped metal tip. Can this end replace it?

Yes. Cut the old tip off cleanly, seal the cut and push the new end on. Allow for the length you lose, and check the finished lace length against the eyelet spacing before you commit the run. If the existing tip is moulded on rather than crimped, send a length of the lace and we will confirm whether it can be trimmed back cleanly.

Q3. How do you set the grip on a waxed or coated lace?

With a little more clearance than a bare braid. A coated lace carries a thin skin over its core, and a bore that is tight on that skin can polish through it where the cord enters the end. The bore is sized on the coated cord itself and the entry rim is finished smooth, so the coating is rubbed as little as possible. Send a length of the actual coated lace rather than a measurement.

Q4. Can the metal version go on a performance shoe?

It can, but weigh it first. Metal gives a dressier finish and more shine than PVC, and it changes how the lace hangs: on a very light racing or training shoe the extra weight at the end is noticeable in the hand and in how the lace falls. It suits lifestyle, court and boot designs better than a stripped-back performance shoe, so approve the weight and the finish on a physical sample rather than on a drawing.

Q5. How closely can the colour follow our lace and eyelets?

As closely as your reference allows. Colour is matched to a physical standard — a lace swatch, an eyelet, a Pantone number or a part you already run — and it is pigmented into the compound rather than painted on, so the shade is not a coat that can rub away. The same matching pass covers the rest of the set, so ends ordered alongside custom PVC patches for the upper land on the same shade. Approve it under the light the product will be seen in.

Q6. What is the smallest mark the closing profile can carry?

A short wordmark, a monogram or a simple symbol, held as an embossed or engraved detail. The limit is set by the smallest stroke rather than by the overall size of the logo, so we review your file at finished size before tooling and tell you if a line needs thickening. The check is the same one we run for 3D PVC patches, and adjusting artwork is quicker than adjusting a mould.
